Kress Mission Mega KR233 RTKn 12000m2

Battery & Charger

• Battery capacity: 10 Ah
• Battery voltage: 20 VSide charge
• Battery type: Li-Ion

Capacity

• Maximum area (cutting every 72h): 18000㎡
  Recommend area (cutting every 48h): 12000㎡

Cutting

• Cutting width: 35 cm

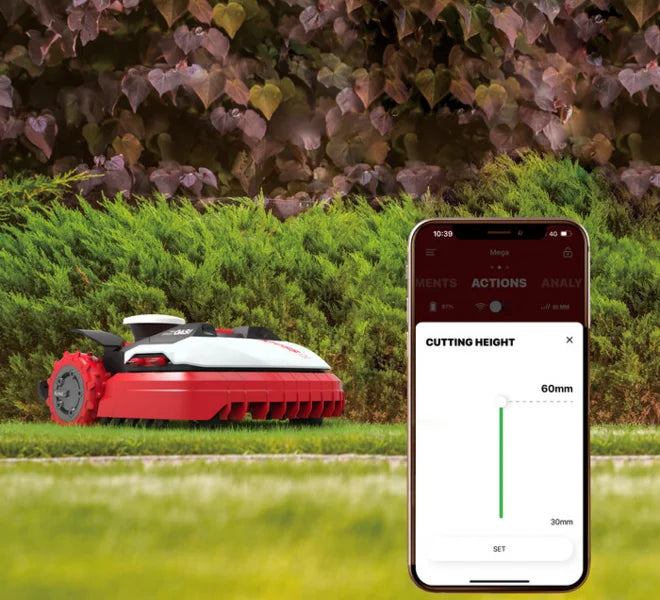

• Cutting height adjustment: Electronic
• Cutting blades: 12
• Self-leveling blade disc
• Cutting methods: Logic
• Cutting height min: 30 mm

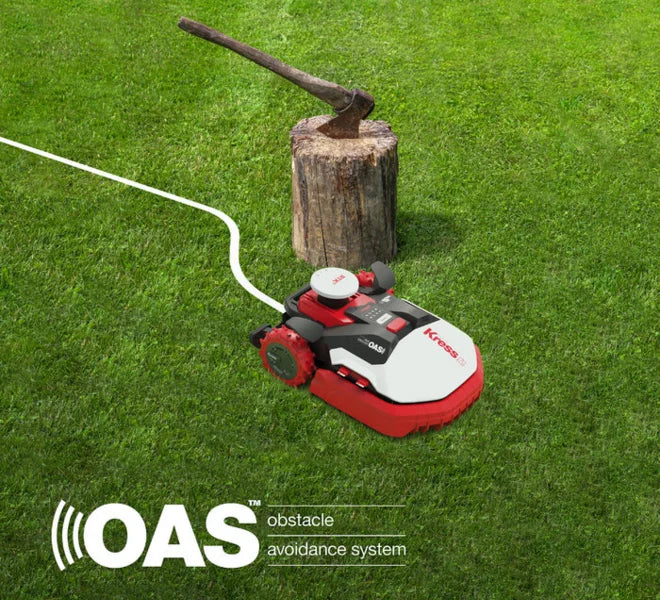

• OAS - Obstacle Avoidance System
• Forward and rotating

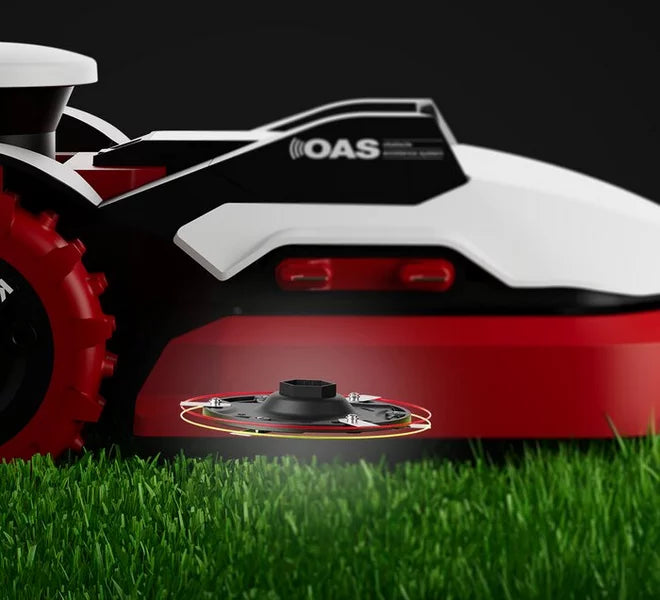

• Double layer blades

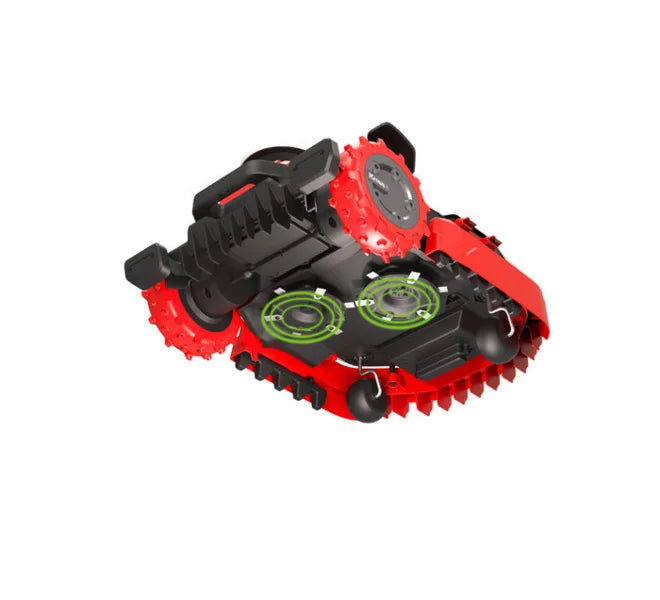

• Dual disc
• Navigation pattern: Systematic
• Cutting height max: 60 mm

User interface

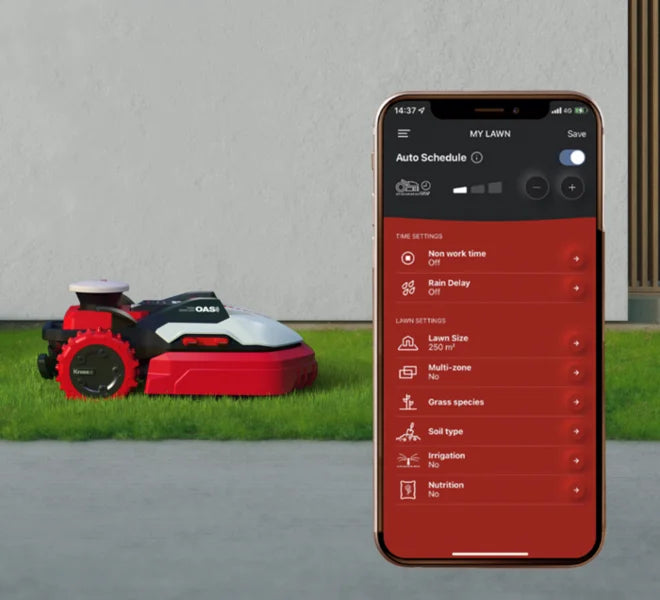

• App
• Display LCD

Connectivity

• 4G

Basic specifications

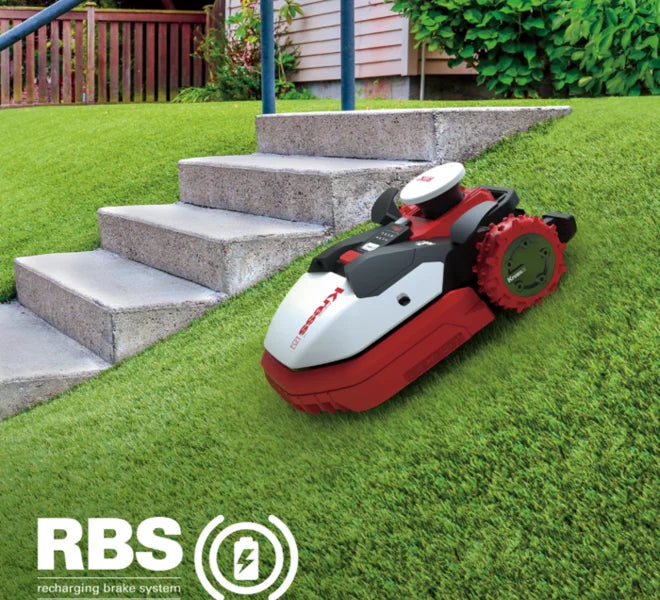

• Maximum slope: 40%
• Sound level perceived: 62 db
• Front wheels: 2
• Weather resistant
• Hose cleaning

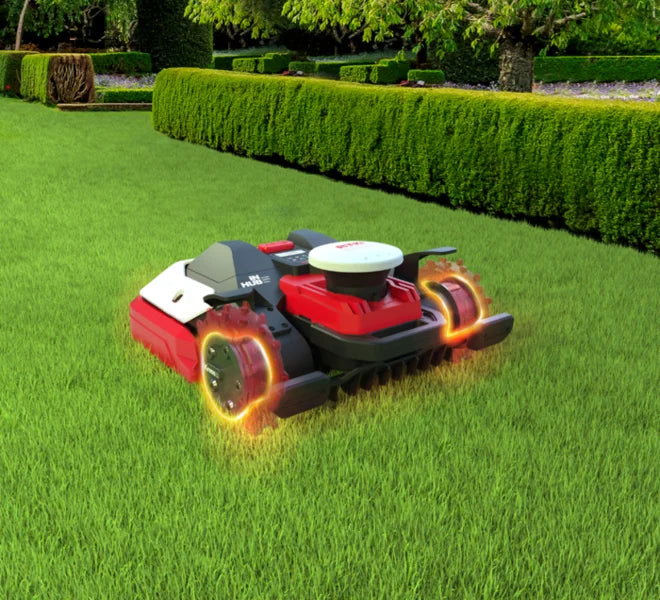

• In-wheel motor
• TeamWork

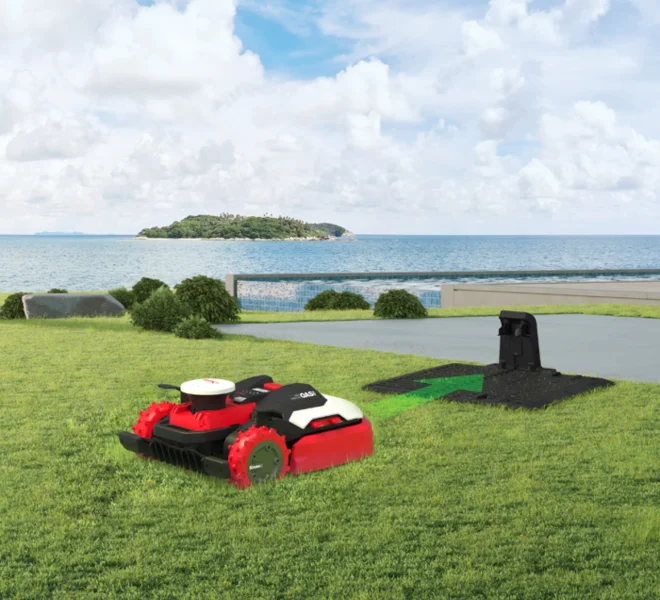

• Quick return
• Water protection index (IP code): IPX5
• Maximum lawn size: 18000㎡
• Recommended lawn size: 12000㎡

Weight and Dimensions

• Size: 762x555x296 mm
• Weight: 20 kg

Safety

• PIN code
• Lift sensor
• Low inertia blades
• Electric fence
• Anti-theft system
• Auto lock

Software updates and upgrades

• OTA (Over-The-Air)
• USB

Capacity-copy

• Maximum area (cutting every 72h): 18000㎡
• Recommend area (cutting every 48h): 12000㎡

Kress Mission Mega RTKn 12000 KR233E

• 6x Screws for fixing disk
• 36x Screws for fixing blades
• Charging base
• 8x Charging base fixing nails
• Hex keys
• Wrench for RTK antenna
• Magnetic strip
• 36x Spare blades

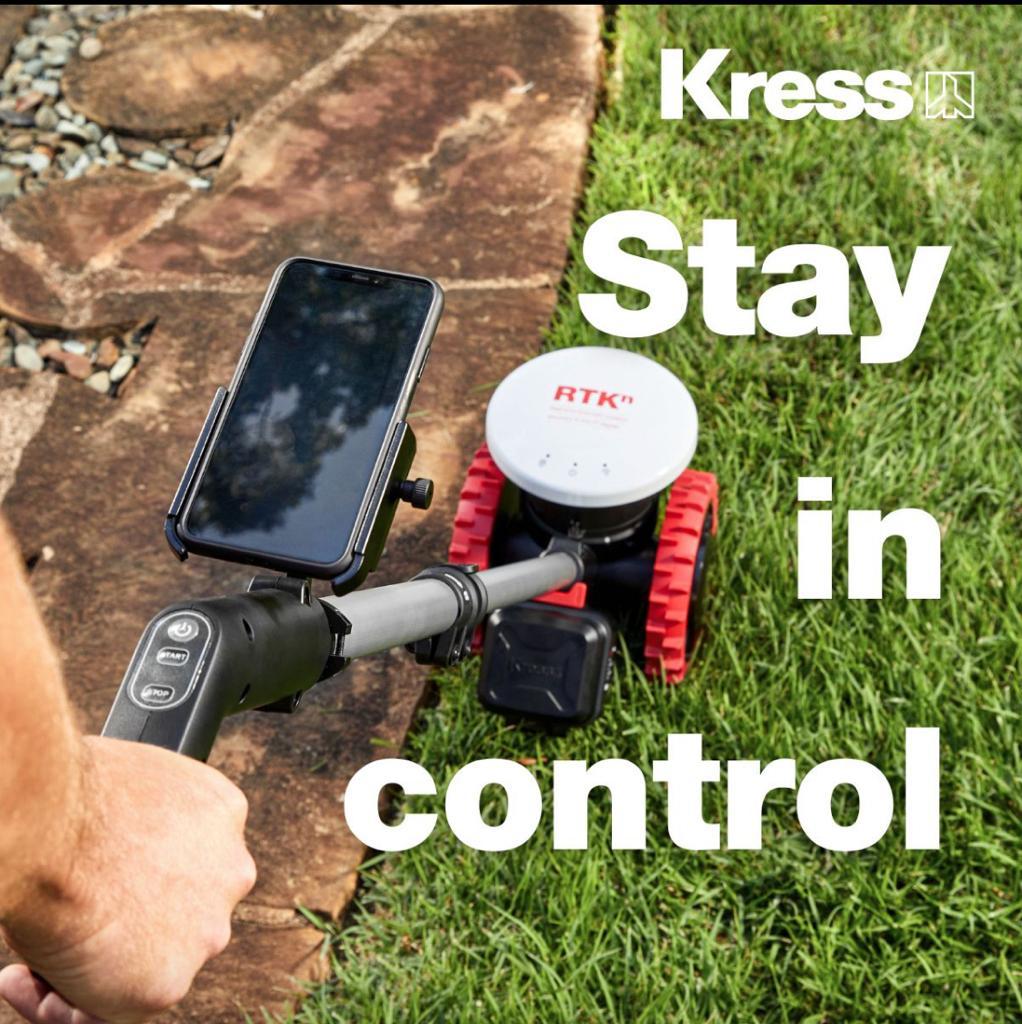

• RTK antenna
• 16x Pegs
• Hexagon screwdriver
• 2x Measurement gauge
• 1x Charging pile
• Charger (KA3717/KA3817)
• Battery pack (KA3010)

View and download the Kress Mission Mega RTKn 12000 manual here.

Kress Mission

Warranty statement

If your Kress Mission becomes defective due to faulty materials or workmanship within a period of 3 years for consumers from the date of purchase, we guarantee to:

• Replace or repair all defective parts, free of charge, or
• Repair products free of charge, or
• Replace the unit with a new or re-conditioned unit, free of charge.

Your warranty is subject to the following conditions:

• Registration on https://account.kress-robotik.com within 30 days of purchase. (without registration, only 24 months warranty will apply for consumers i.e. natural persons who use the device for private use)
• For Missionᵀᴹ Mega RTKⁿ products, besides above consumer warranty, also provide a 12 month warranty for professional users regardless of online registration.
• Battery packs are guaranteed for a 12 month period only, regardless of online registration and the type of customer.
• The tool has not been misused, abused, neglected, altered, modified or repaired by anyone other than an authorized service center.
• Only genuine Kress Mission accessories and parts have been used on or with the product.
• The tool has been subjected to fair wear and tear.
• The tool has not been used for rental purposes.
• The tool has not sustained damage through foreign objects, substances or accidents.
• Battery/product at a outside temperature below 0°C has to be stored frost free (indoor).

Your warranty does not cover:

• Components that are subject to natural wear and tear caused by use in accordance with operating instructions.
• Unauthorized/improper maintenance/handling or overload is excluded from this warranty as are accessories such as bulbs, blades and bits, etc.
• Damage, malfunctions or failure resulting from high pressure washer, steam or running water cleaning the product.

For guarantee claims, you will need to submit a registration document and proof of purchase in the form of a valid receipt that displays date and place of purchase. This guarantee statement does not replace but is in addition to your statutory rights. This warranty does not apply to accessories supplied with the tool. This warranty applies only to the original purchaser and may not be transferred. All repairs and replacement tools will be covered by the limited warranty for the balance of the warranty period from the date of the original purchase.

Right to make changes
Kress reserves the right to make any changes to Kress products or warranty coverage at any time without incurring any obligation with respect to any product.
