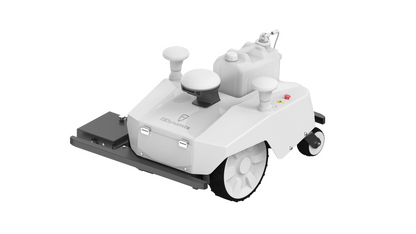

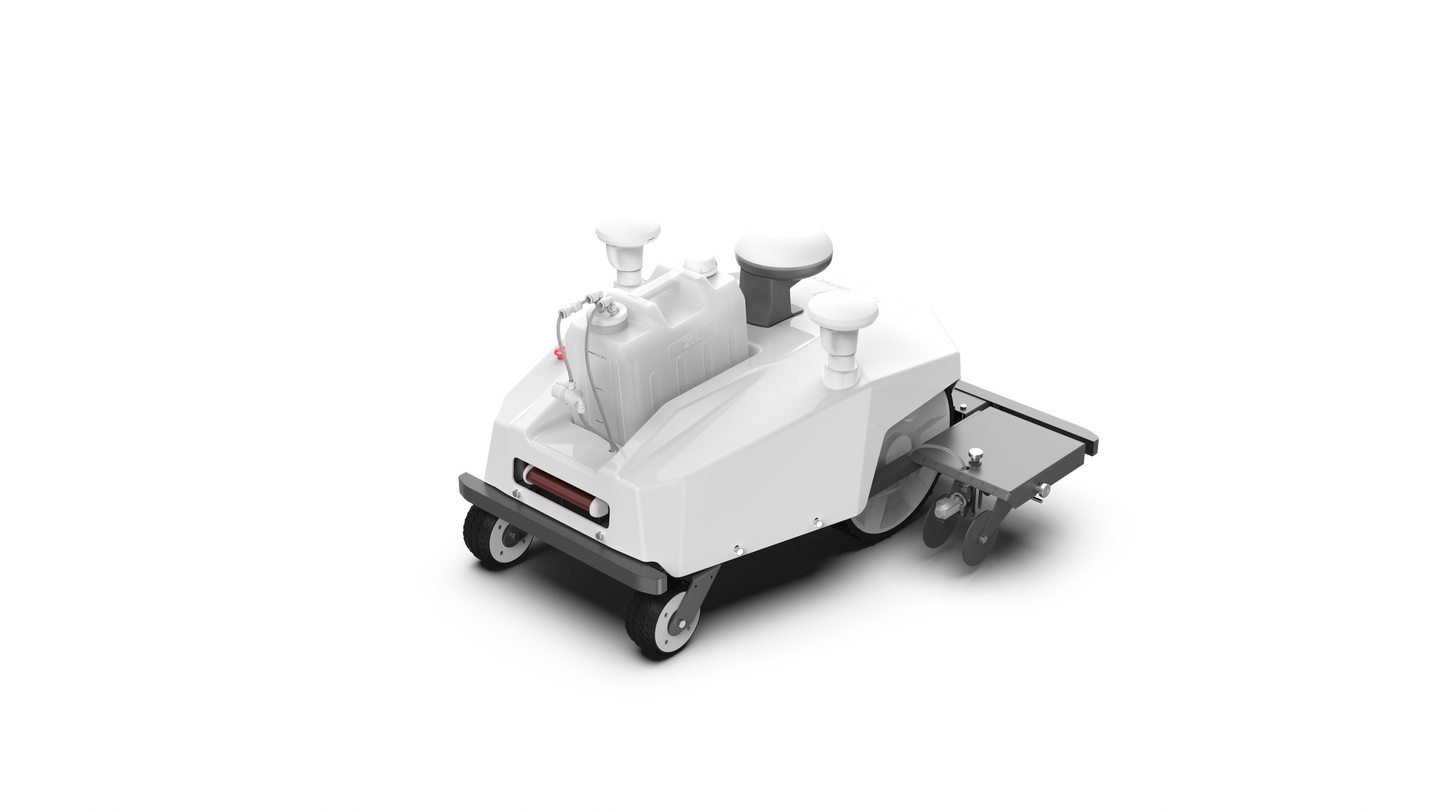

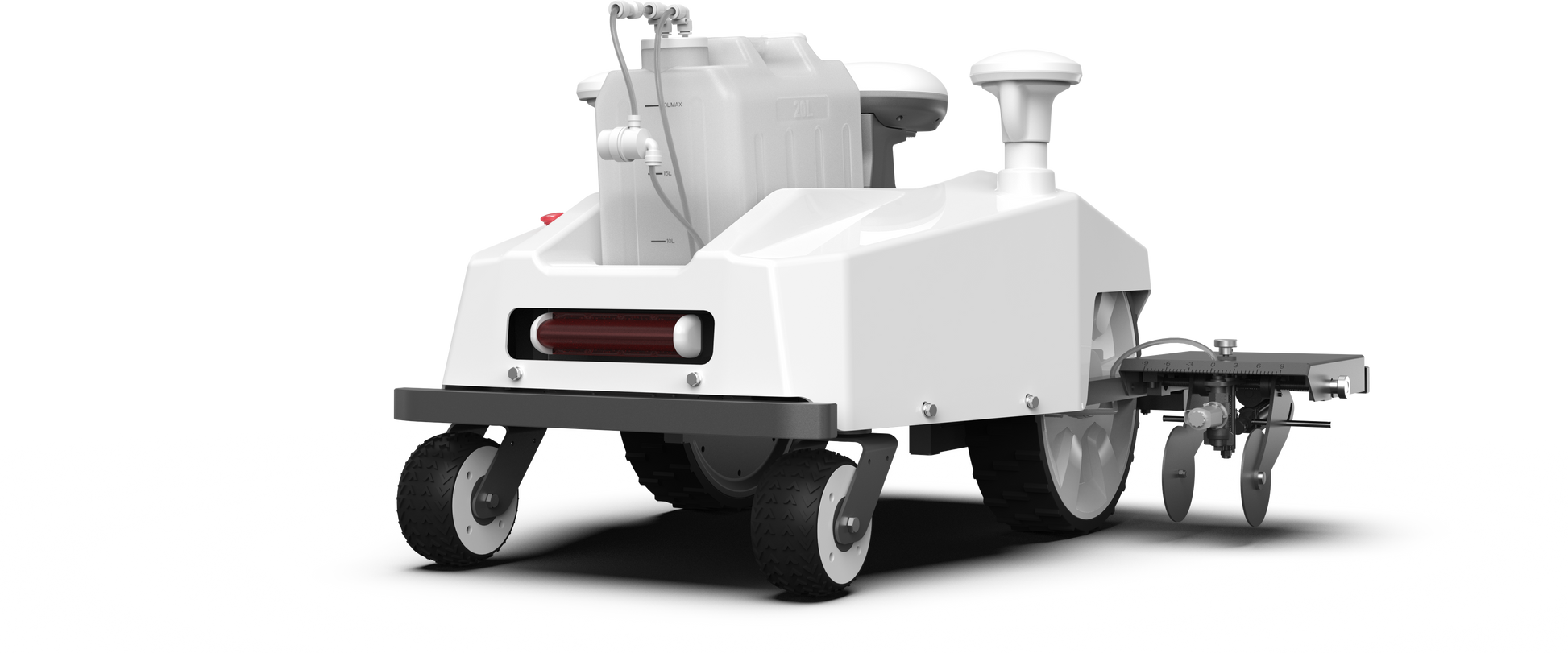

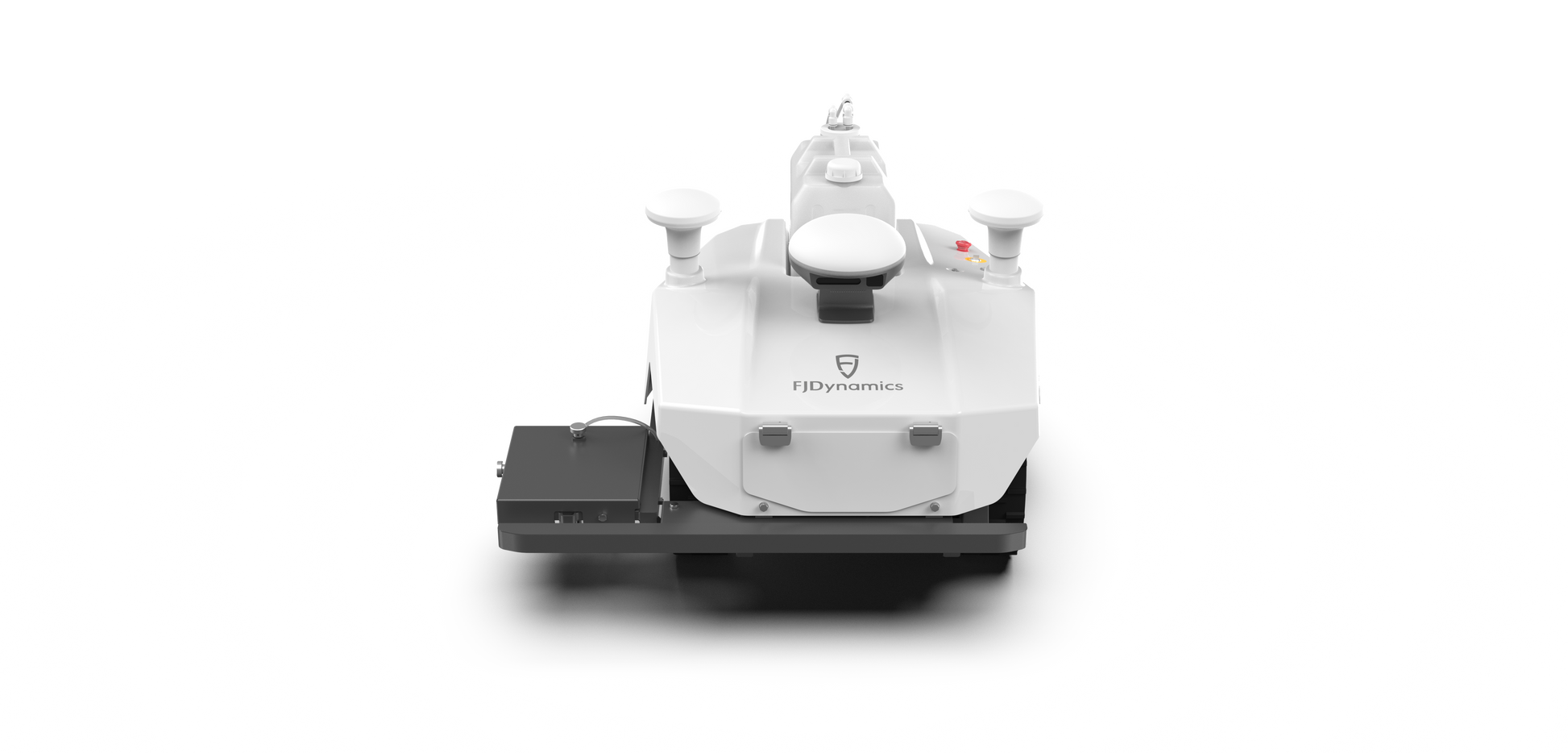

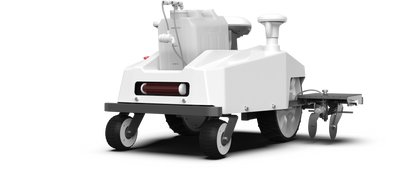

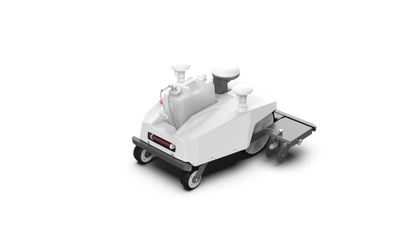

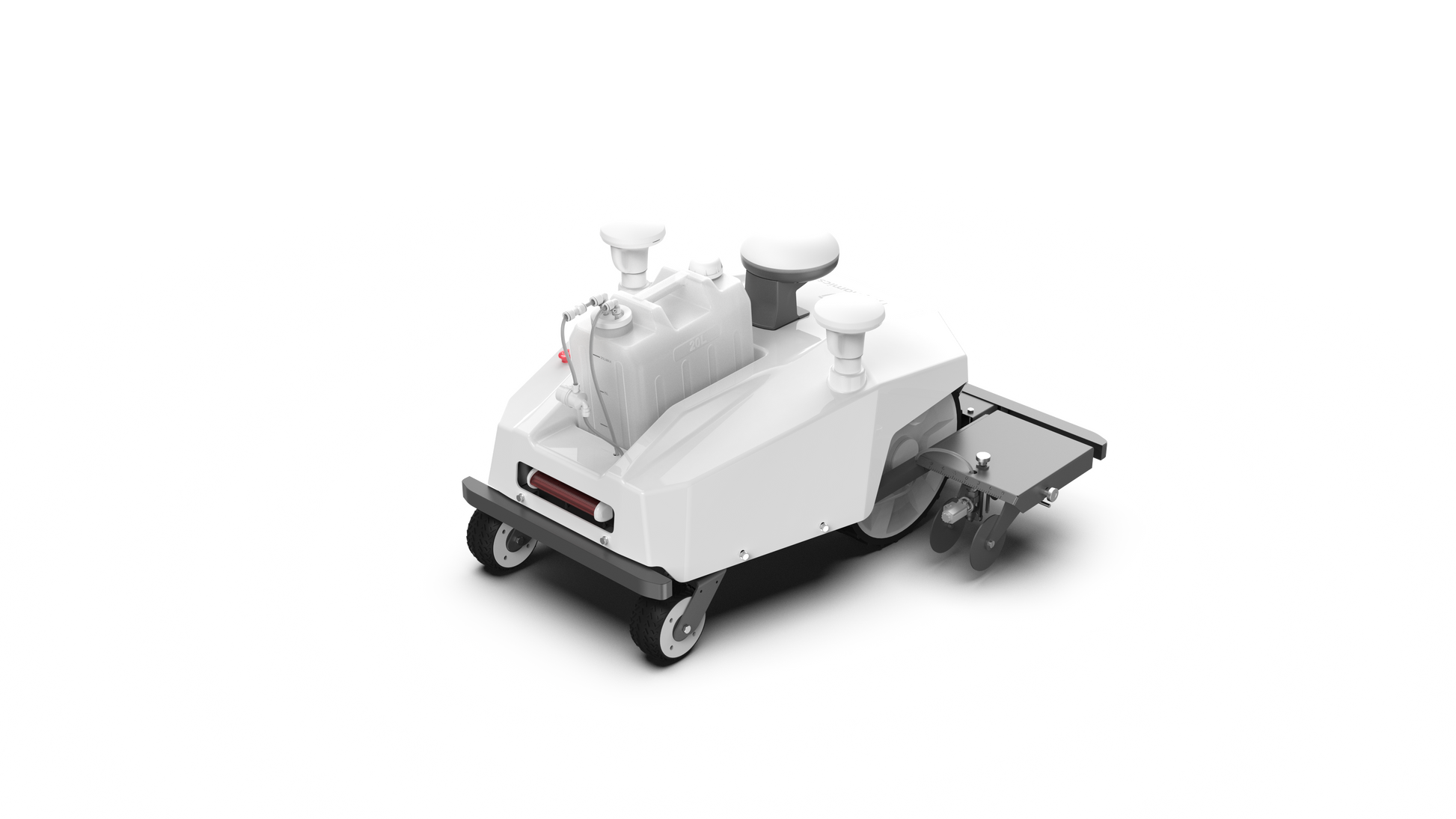

FJ Dynamics Paintmaster™ Pro - Robotic Line Marker - Coming soon

FJ Dynamics Paintmaster™ Pro - Robotic Line Marker - Coming soon

Regular price $29,490.00 AUD
Regular price Sale price $29,490.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:FJDRLM01

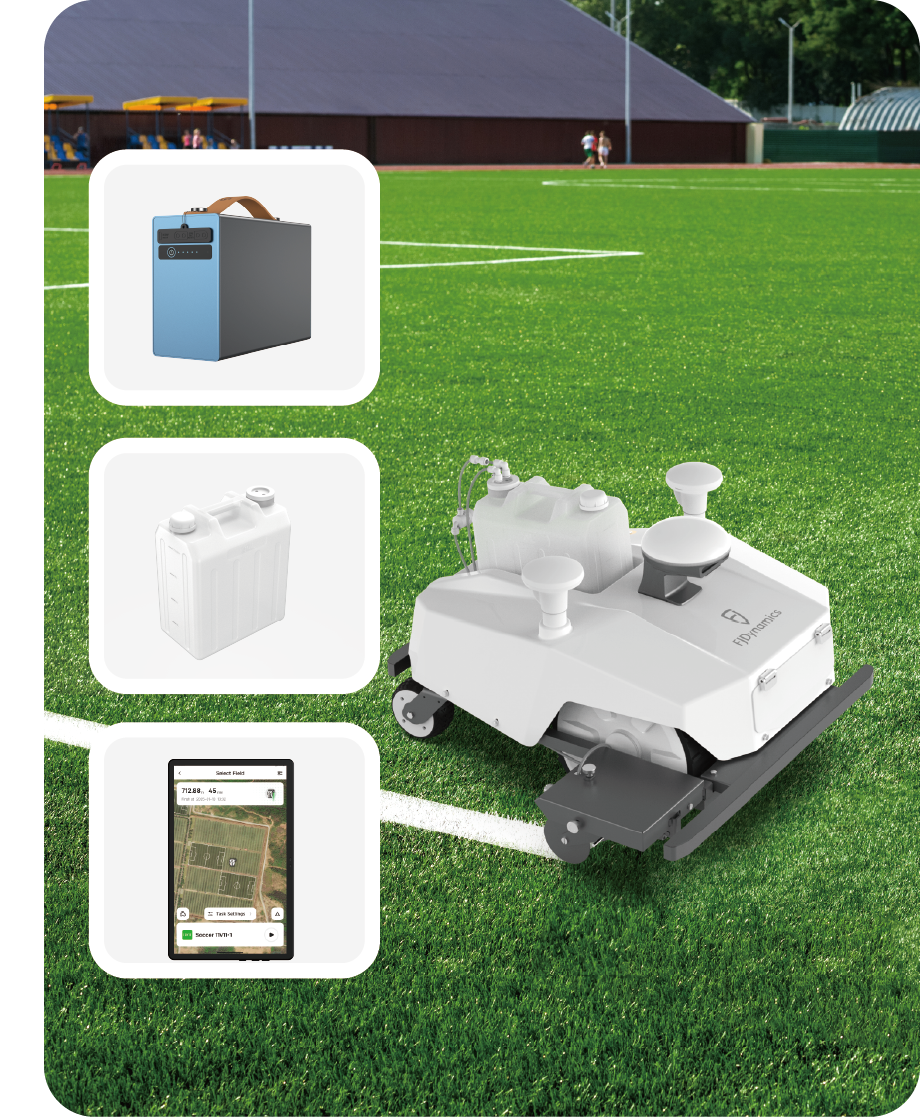

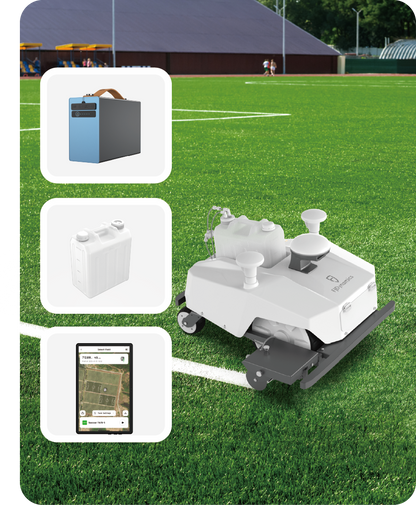

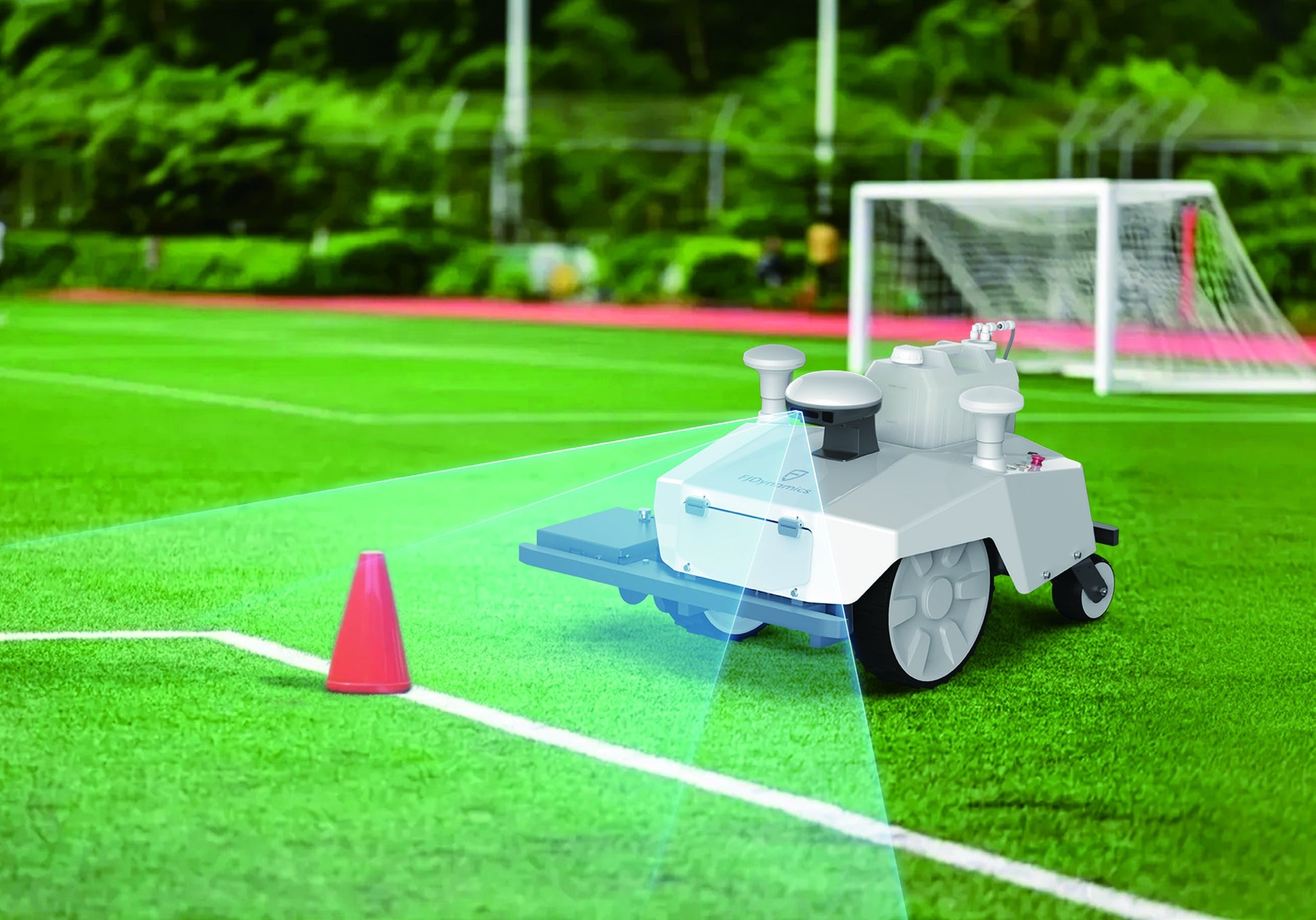

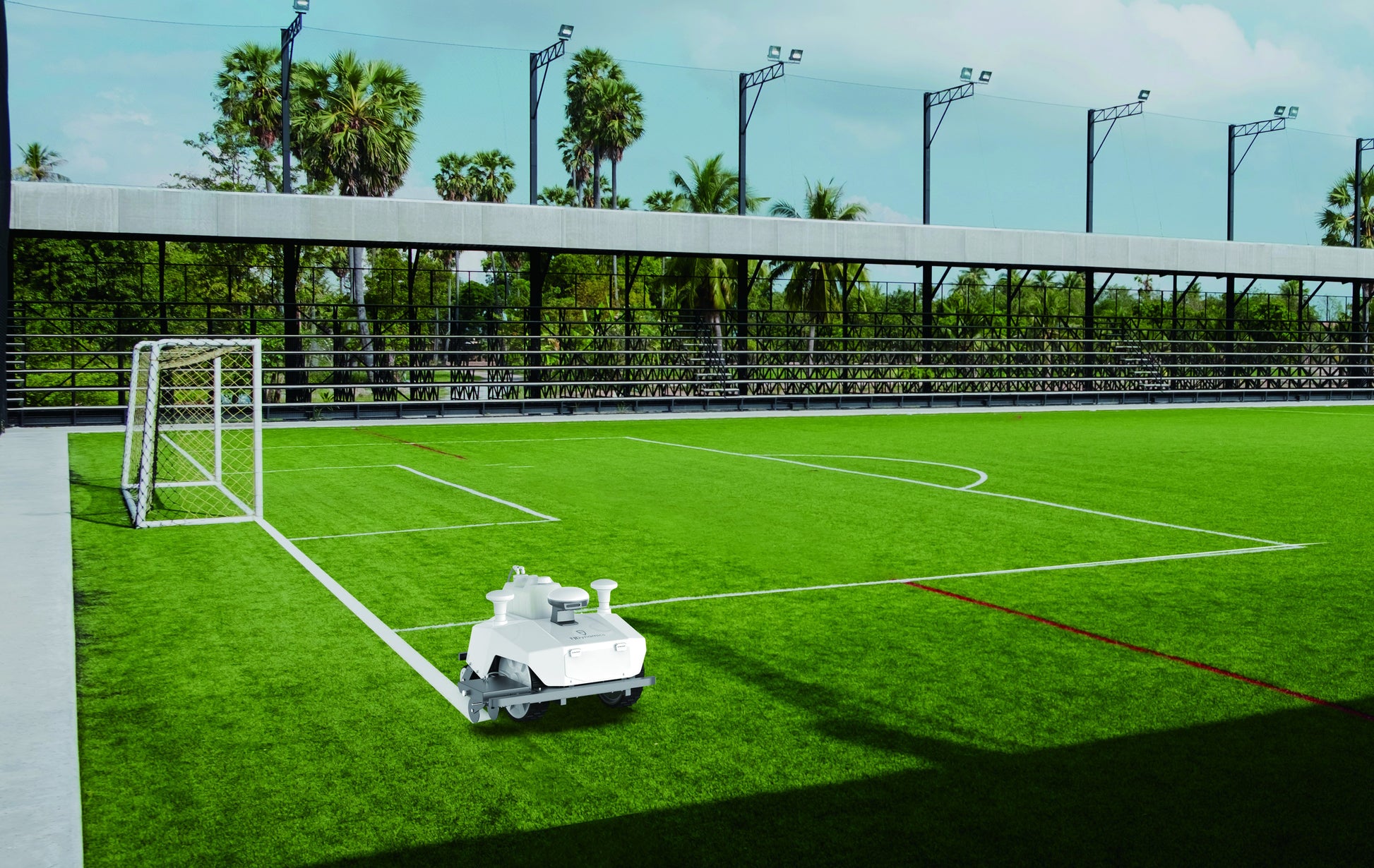

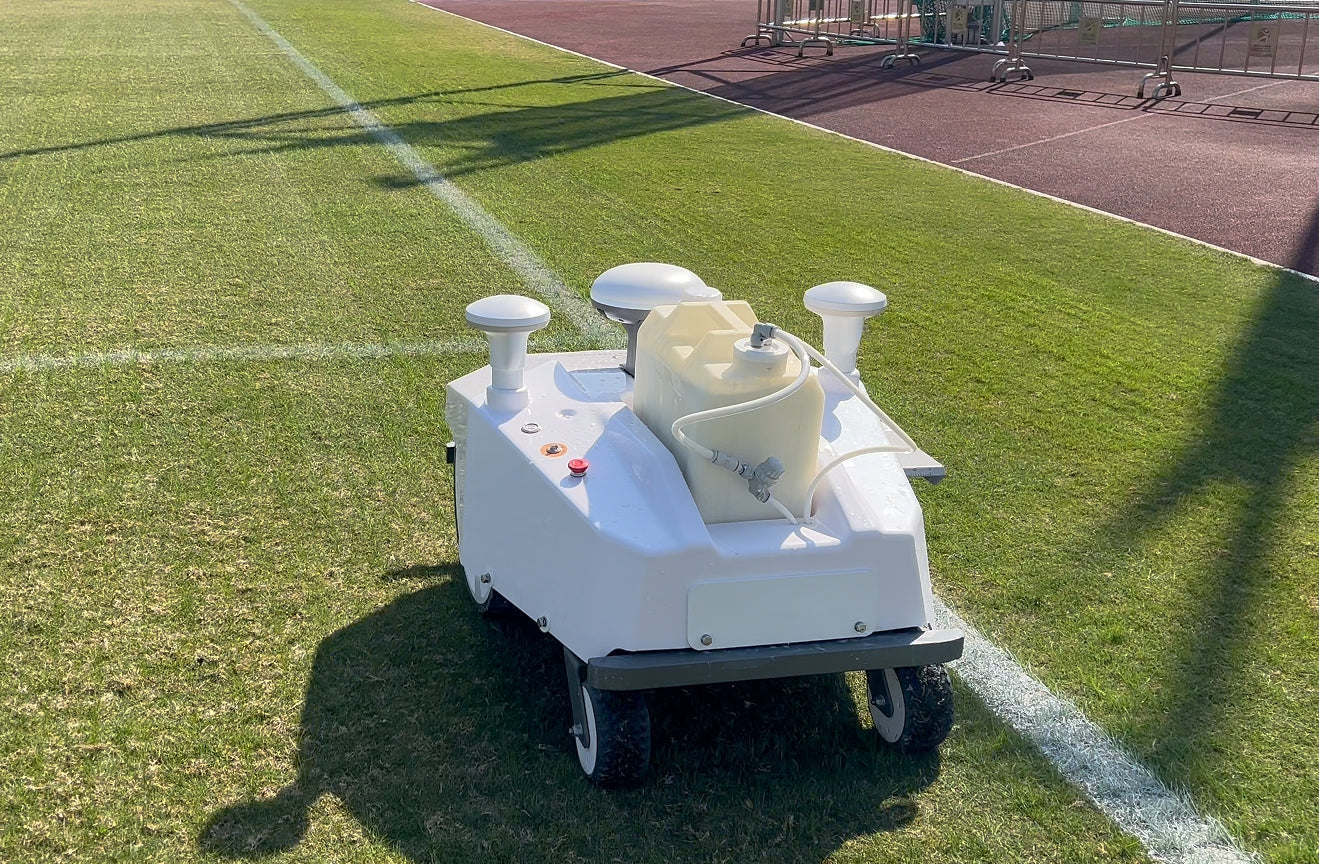

Start a new era of autonomous line marking on the sports fields with the AI-powered FJD Paintmaster™ Pro! This robotic line marker delivers centimeter-level accuracy through dual industrial-grade GNSS receivers and a local base station. Paired with FJD's laser kit, it can also provide millimeter-level marking accuracy even in GPS-challenging areas, such as under trees or near spectator stands. The Paintmaster™ Pro can save hundreds of hours and a lot of labour costs every year, making it a top pick for marking clear, crispy lines in various sports fields. With the Paintmaster™ Pro Robotic Linemarker, your field marking work becomes more efficient and accurate, ensuring that your sports fields are in great condition for each match.

Contact us for upcoming demos once this product arrives in Australia

The FJ Dynamics Paintmaster Pro brochure can be viewed here:



View full details

Designed for Convenience



  • Lightweight and portable design for easy transportation.
  • Independent paint filling port for fast and convenient paint refills.
  • Easy paint bucket change for faster pipeline cleaning. Standard tablet for easy control and convenient use.
  • Removable structure makes it easy to repair and maintain. Versatile battery can be used to power other devices.

User-friendly Software

  • Allow for customizing marking maps based on your needs.
  • Distribute maps to corresponding devices from the cloud platform.
  • Support fleet management for marking with multiple devices at the same time.
  • Switch to the next field automatically upon completing the current marking task when you have multiple fields to mark.
  • Monitor marking status in real time and control marking operation and image feed remotely from the app without being on the field.

Weight (Excluding Paint): 58.6 kg

Dimensions: 1068 x 1023 x 672 mm

Marking Speed: 1–3 km/h

Paint Bucket Capacity: 20L

Nozzle Height: 3–8 cm

Standard Battery Capacity: 0.5 kWh

Expanded Battery Capacity: 1 kWh

Mobile Battery Energy Storage: Supported

Fast Battery Swapping: Supported

Base Station: Included

Operation Tablet: Included

Handheld Point Marker: Included

Laser Kit: Optional

Working Temperature: 5–45 ℃

Battery Life: (0.5 kWh Standard Battery)  5h

Charging Time: (0.5 kWh Standard Battery)  2h

For more information about the warranty of this product, please contact us.
